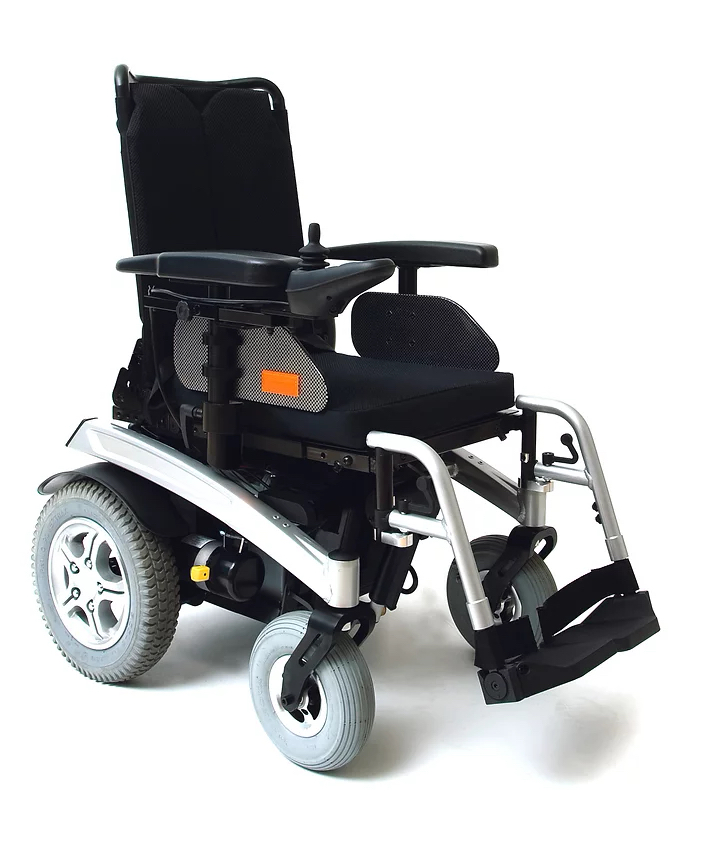

The innovative R-4 offers the standard features necessary to meet the demands of daily life while delivering easy portability. The R-4 combines rear anti-tip wheels for stable outdoor performance with a compact frame for smooth indoor maneuvering. The R-4 is the ultimate economical folding power chair.
Features
- High-tensile carbon steel frame
- Folding back
- Height-adjustable armrests
- Adjustable back height
- Swing in out/out leg rests
- Manual wheel locks
- 250 watt dc motor
Specifications
- Weight Capacity – 113 kg (250lbs.)
- Maximum Speed – Up to 6.4 km/h (4 mph)
- Ground Clearance – 10 cm (4â€) (at motor)
- Turning Radius – 127 cm (48â€) (with leg rests)
- Overall Length – 109.2 cm (43â€)
- Overall Width – 61.5 cm (24.25â€)
- Drive Wheels – 31.8 cm x 5.7 cm (12.5 x 2.25) (pneumatic)
- Anti-tips – 3.8 cm (1.5â€) (solid)
- Casters – 20 cm x 5 cm (8†x 2â€) (solid)
- Suspension – N/ADrive Train: Two-motor, Rear-wheel drive
- Braking System – Intelligent regenerative disc braking
- Standard Electronics – 50 amp PG VR2 controller
- Standard Seat – Sling
- Battery Charger – Off-Board, 5 amp
- Per-charge range – Up to 17.28 km (10.74 miles)
- Battery Requirements – (2) 12 volt deep-cycle
- Battery Size (largest) – 35 AH
- Battery Weight – 11 kg (24.5lbs.) each
- Base Weight – 42kg (93 lbs.) (without batteries)
- Standard Seat Weight – N/A (seat is integrated with base)
- Std. Seating Dimensions – 45.7cm x 40.6 cm (18†x 16â€)
