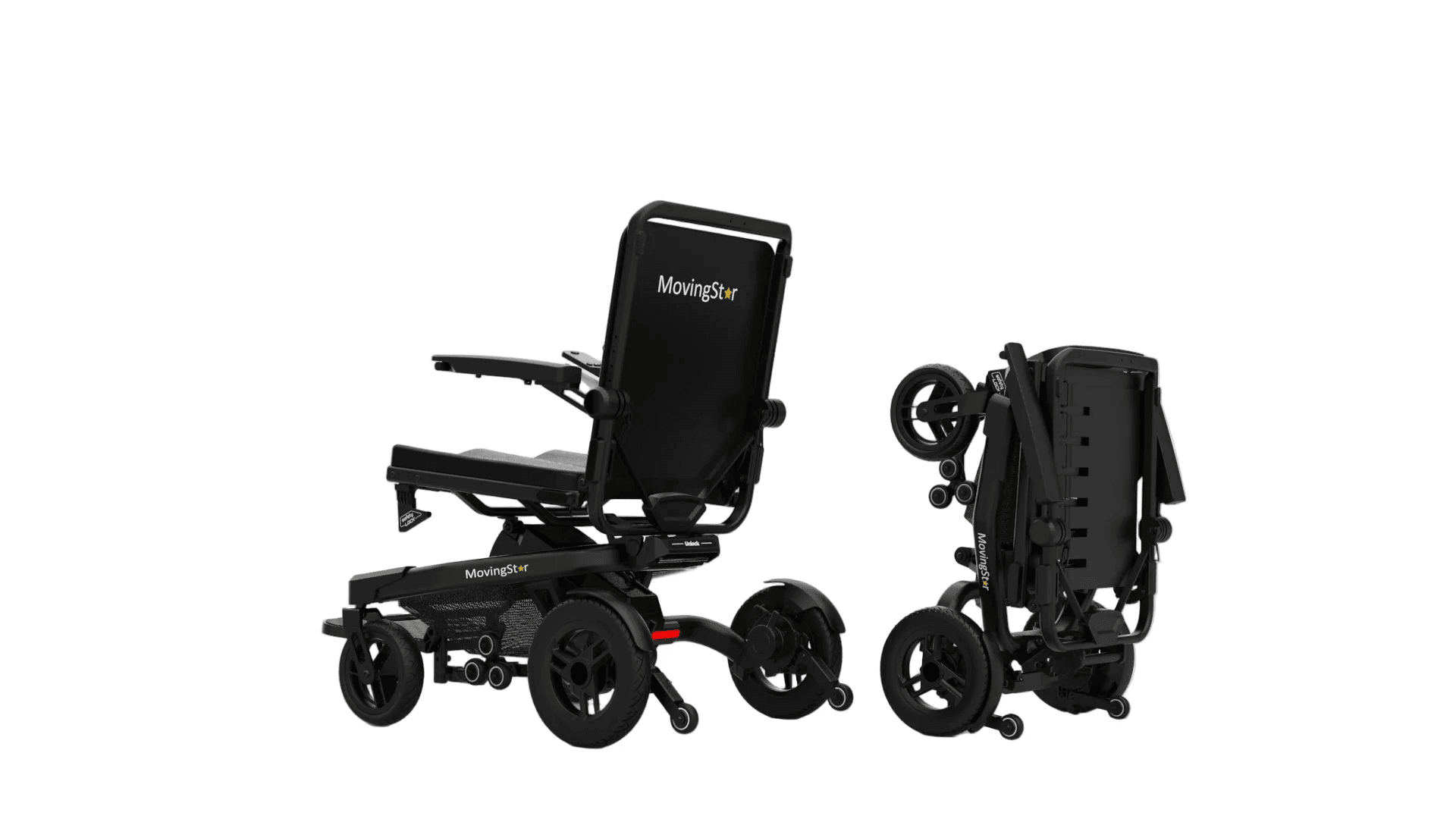

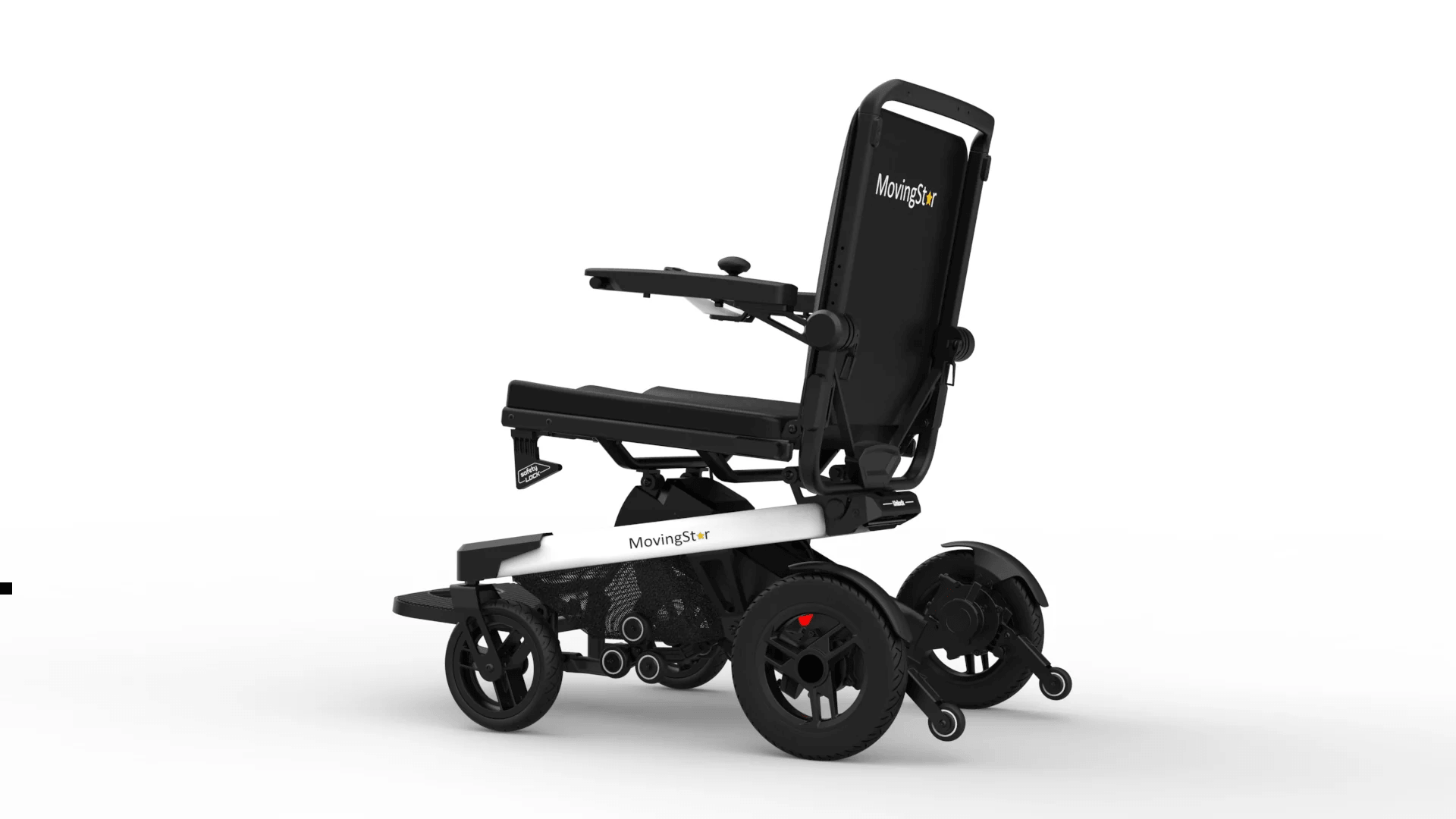

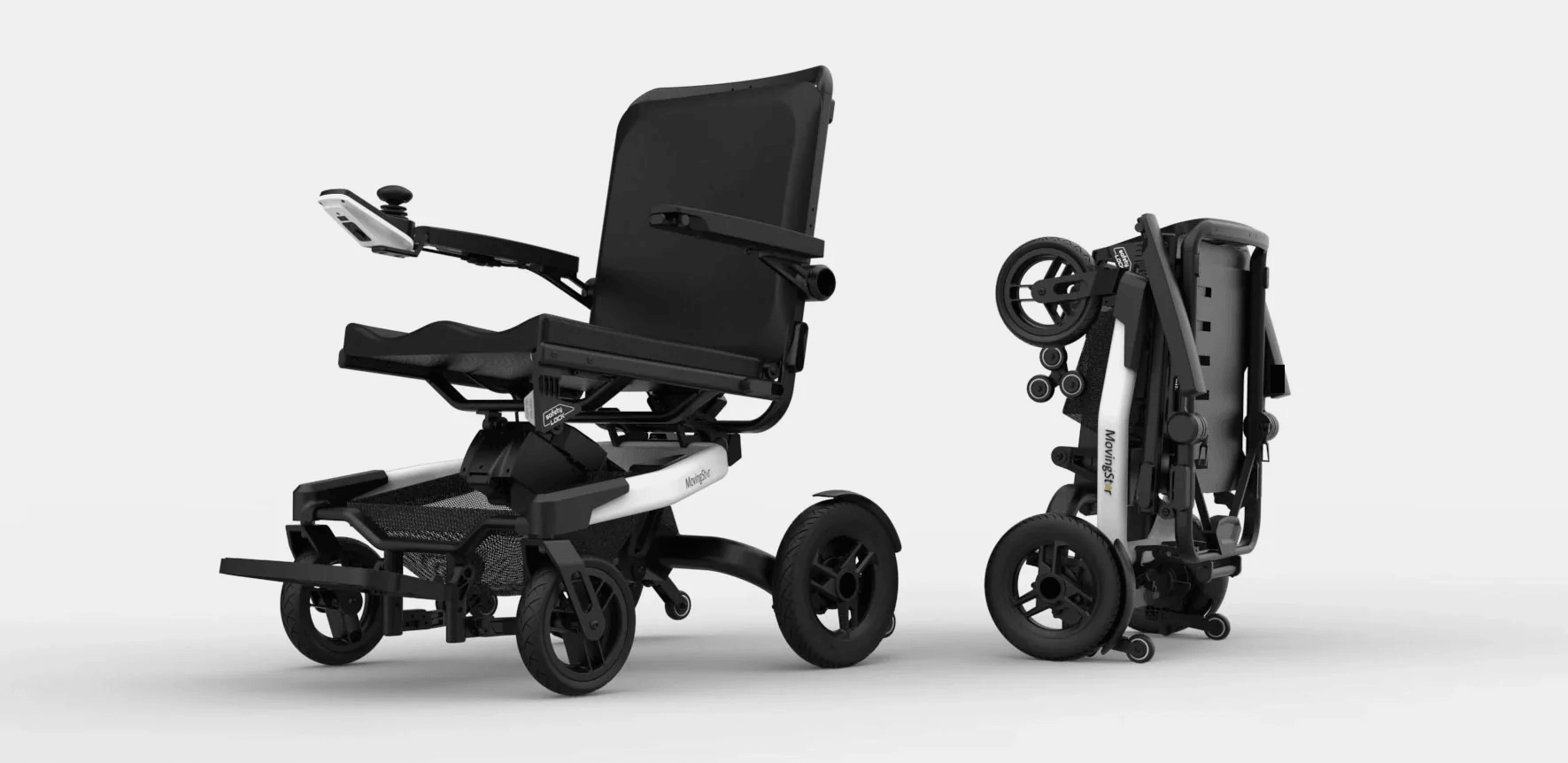

The Titan is the latest design in portable electric wheelchairs, incorporating new features with a modern, elegant look.
Developed with the end user in mind, it offers extra comfort and superior control.
Key Features
Mode Display – Three driving modes: Soft, Normal, Sport (shown on the hand controller display). The controller vibrates on startup, helping the user know the chair is ready.
Backrest Height Adjustment – By loosening four set screws on the top of the backrest, the height can be freely adjusted within a 100mm range for optimal comfort.
Armrest Height Adjustment – With a quick-release handle, the armrest height can be easily adjusted within a 100mm range.
Ergonomic seat and backrest cushions – Designed for maximum comfort.
New tri-loading wheel design – Makes loading into cars and SUVs easier.
250W brushless motors – Provide reliable, powerful performance.
Driving range – Up to 25 km with an airline-approved battery.
Performance Specifications

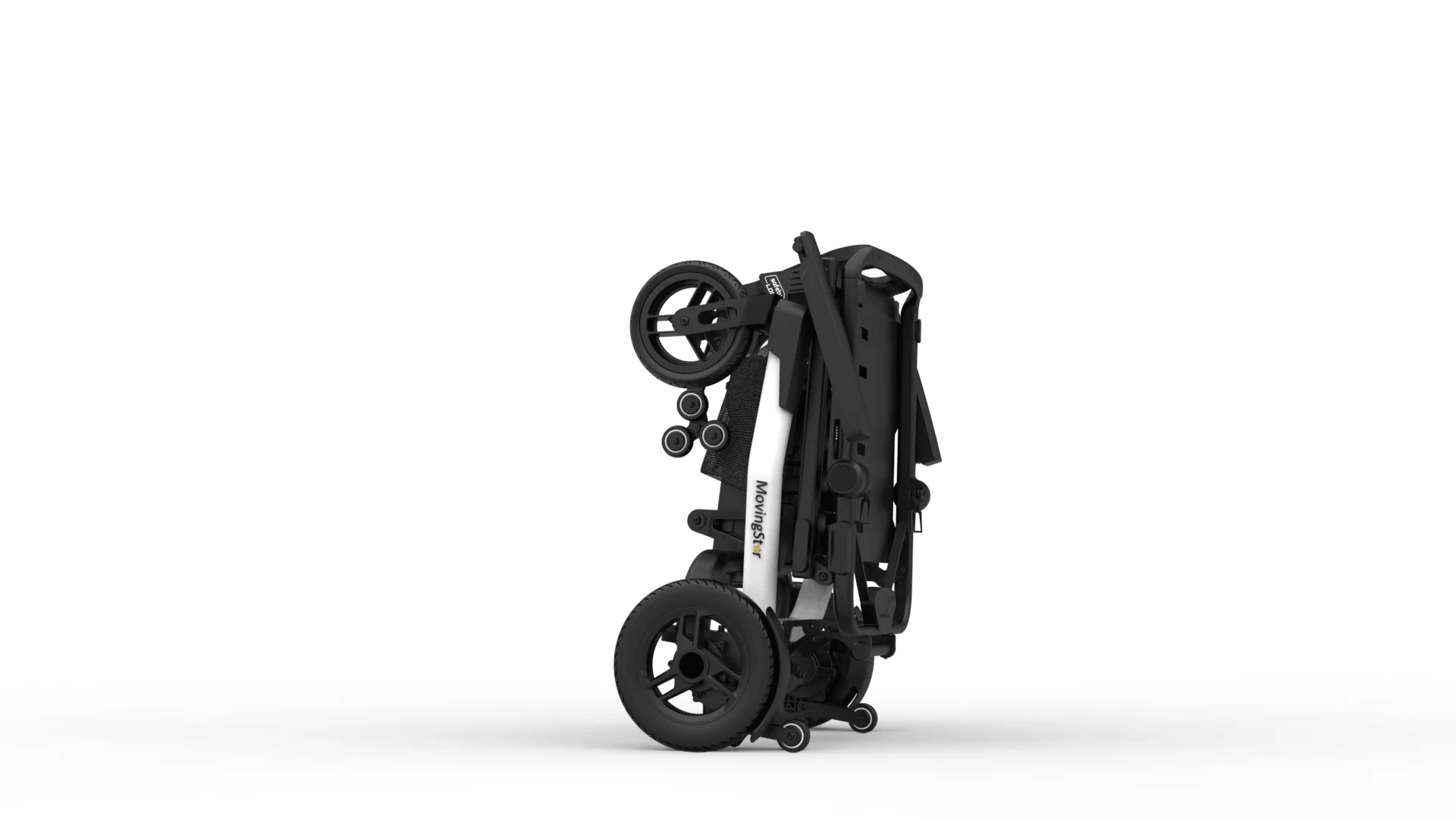

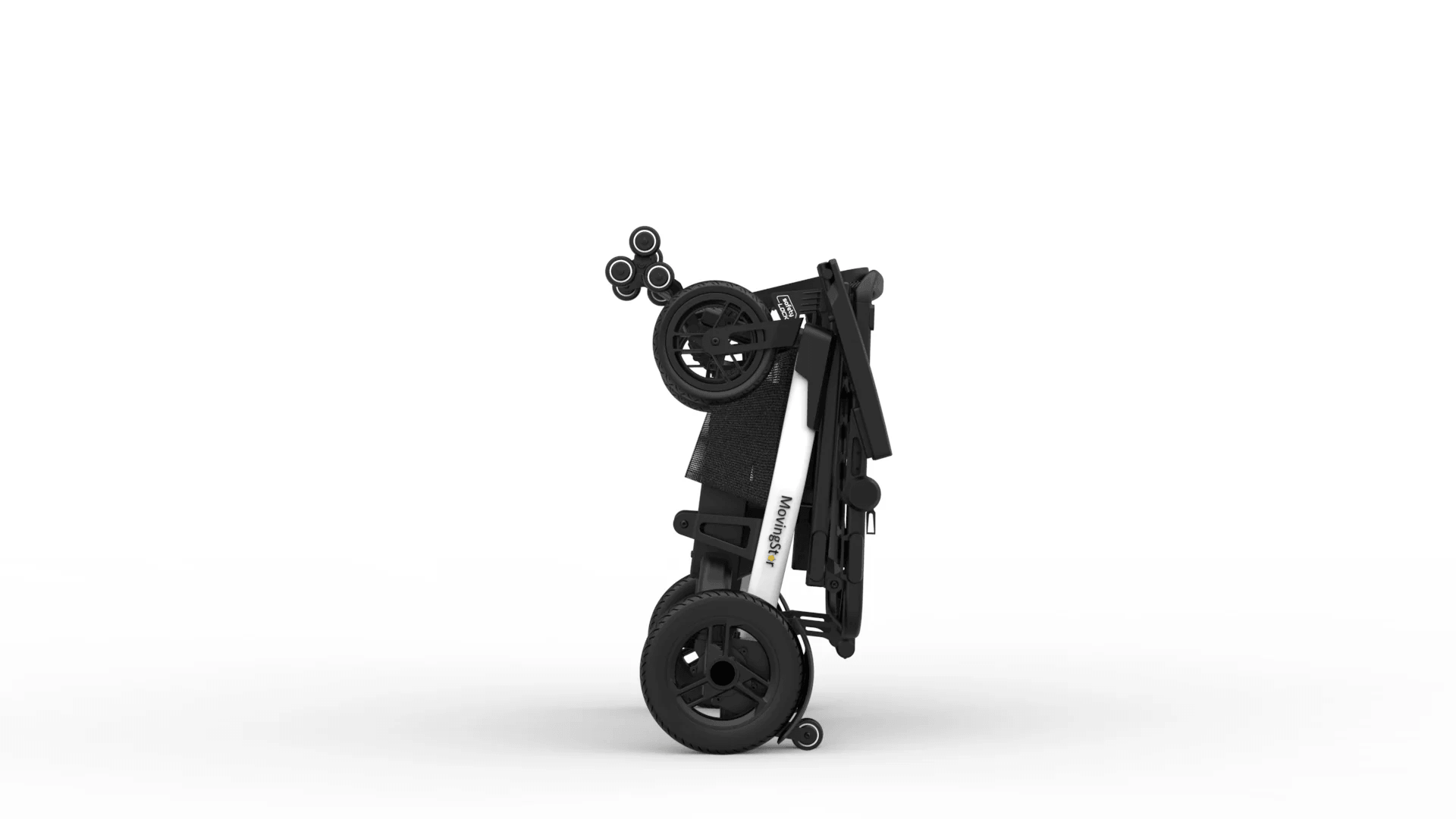

Folded dimensions: 750 × 600 × 350 mm
Driving range: 25 km (airline-approved battery)
Seating width: 460 mm
Maximum speed: 6 km/h
Front wheel diameter: 8”
Rear wheel diameter: 10”
Drive system: Dual motor drive
Motor type: 250W brushless
Floor to seat height: 470 mm
Incline drive capability: 10°
Back support height: 500 / 550 / 600 mm (adjustable)
Turning radius: 800 mm (very tight)
Stopping distance: 1 m (at full speed)
Other Specifications
Obstacle clearance: 40 mm (with 250W brushless motors)
Battery type: Lithium-Ion (24V × 12Ah)
Braking system: Electromagnetic
Batteries provided: 1
Max weight capacity: 136 kg
Battery watt-hour: 288 Wh (airline approved)
Horn: Built-in
Battery charge cycles: ~500
Charging time: 6–7 hours
Charger input: 100–240V, 50/60Hz (international)
Charger output: 24V 2.0A
Dimensional Specifications
Tires: PU solid
Unfolded dimensions: 980 × 600 × 908 mm
Chair gross weight: 25 kg (tri-wheel loading design makes handling easier)
Chair net weight: 23 kg (without battery)
Seat cushion size: 450 mm (W) × 450 mm (D)
Lap belt: Provided
